Dashboard - Beispiel

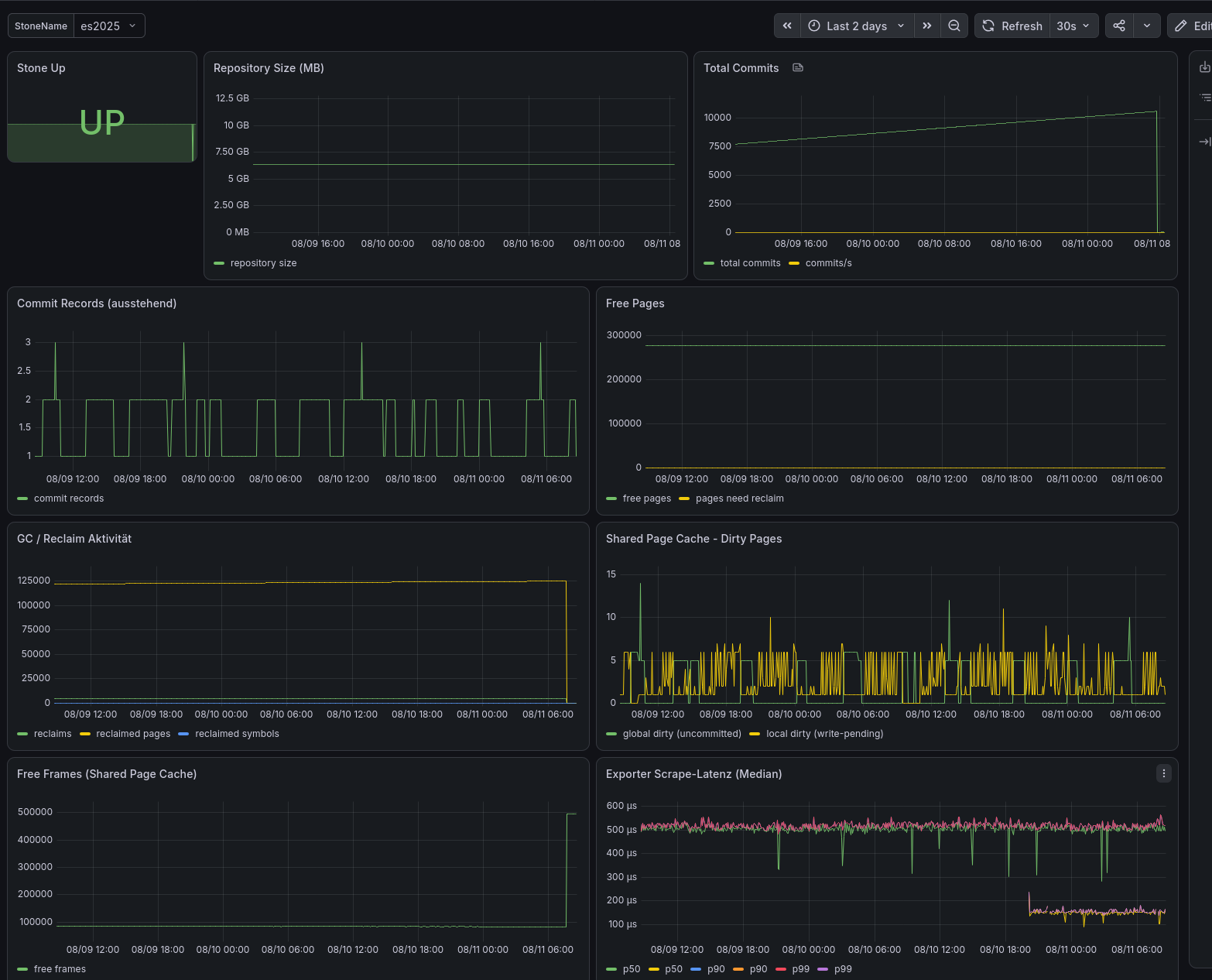

Damit man mal sieht, warum wir das alles machen. Hier ein Screenshot eines ersten Dashboardes:
Dashboard-Spezifikation
Hier ein Beispiel für die dazugehörende Dashboard-Spezifikation
{
"apiVersion": "dashboard.grafana.app/v2",
"kind": "Dashboard",
"metadata": {
"name": "gemstone-example",
"namespace": "default",
"uid": "46258cb9-844b-4a2b-a3e9-745ec2ef45c8",
"resourceVersion": "1786430555024001",
"generation": 2,
"creationTimestamp": "2026-08-07T13:11:23Z",
"labels": {
"grafana.app/deprecatedInternalID": "548802755309568"
},
"annotations": {
"grafana.app/createdBy": "user:bfsdc2tztwlxcc",
"grafana.app/folder": "",
"grafana.app/saved-from-ui": "Grafana v13.1.1 (a9cee6e172)",
"grafana.app/updatedBy": "user:bfsdc2tztwlxcc",
"grafana.app/updatedTimestamp": "2026-08-11T06:42:35Z"
}
},
"spec": {
"annotations": [
{
"kind": "AnnotationQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "grafana",
"version": "v0",
"datasource": {
"name": "-- Grafana --"
},
"spec": {}
},
"enable": true,
"hide": true,
"iconColor": "rgba(0, 211, 255, 1)",
"name": "Annotations & Alerts",
"builtIn": true
}
}
],
"cursorSync": "Off",
"editable": true,
"elements": {
"panel-1": {
"kind": "Panel",
"spec": {
"id": 1,
"title": "Stone Up",
"description": "",
"links": [],
"data": {
"kind": "QueryGroup",
"spec": {
"queries": [
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "gemstone_stone_up{StoneName=\"$StoneName\"}",
"legendFormat": "up"
}
},
"refId": "A",
"hidden": false
}
}
],
"transformations": [],
"queryOptions": {}
}
},
"vizConfig": {
"kind": "VizConfig",
"group": "stat",
"version": "13.1.1",
"spec": {
"options": {
"colorMode": "value",
"graphMode": "area",
"justifyMode": "auto",
"orientation": "auto",
"percentChangeColorMode": "standard",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"showPercentChange": false,
"textMode": "auto",
"wideLayout": true
},
"fieldConfig": {
"defaults": {
"mappings": [
{
"type": "value",
"options": {
"0": {
"text": "DOWN"
},
"1": {
"text": "UP"
}
}
}
],
"thresholds": {
"mode": "absolute",
"steps": [
{
"value": 0,
"color": "red"
},
{
"value": 1,
"color": "green"
}
]
}
},
"overrides": []
}
}
}
}
},
"panel-2": {
"kind": "Panel",
"spec": {
"id": 2,
"title": "Repository Size (MB)",
"description": "",
"links": [],
"data": {
"kind": "QueryGroup",
"spec": {
"queries": [
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "gemstone_stone_repository_size_mb{StoneName=\"$StoneName\"}",
"legendFormat": "repository size"
}
},
"refId": "A",
"hidden": false
}
}
],
"transformations": [],
"queryOptions": {}
}
},
"vizConfig": {
"kind": "VizConfig",
"group": "timeseries",
"version": "13.1.1",
"spec": {
"options": {
"annotations": {
"clustering": -1,
"multiLane": false
},
"legend": {
"calcs": [],
"displayMode": "list",
"enableFacetedFilter": false,
"overflow": "ellipsis",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"fieldConfig": {
"defaults": {
"unit": "decmbytes",
"thresholds": {
"mode": "absolute",
"steps": [
{
"value": 0,
"color": "green"
},
{
"value": 80,
"color": "red"
}
]
},
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"showValues": false,
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
}
},
"overrides": []
}
}
}
}
},
"panel-3": {
"kind": "Panel",
"spec": {
"id": 3,
"title": "Total Commits",
"description": "",
"links": [],
"data": {
"kind": "QueryGroup",
"spec": {
"queries": [
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "gemstone_stone_total_commits{StoneName=\"$StoneName\"}",
"legendFormat": "total commits"
}
},
"refId": "A",
"hidden": false
}
},
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "rate(gemstone_stone_total_commits{StoneName=\"$StoneName\"}[5m])",
"legendFormat": "commits/s"
}
},
"refId": "B",
"hidden": false
}
}
],
"transformations": [],
"queryOptions": {}
}
},
"vizConfig": {
"kind": "VizConfig",
"group": "timeseries",
"version": "13.1.1",
"spec": {
"options": {
"annotations": {
"clustering": -1,
"multiLane": false
},
"legend": {
"calcs": [],
"displayMode": "list",
"enableFacetedFilter": false,
"overflow": "ellipsis",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"fieldConfig": {
"defaults": {
"thresholds": {
"mode": "absolute",
"steps": [
{
"value": 0,
"color": "green"
},
{
"value": 80,
"color": "red"
}
]
},
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"showValues": false,
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
}
},
"overrides": []
}
}
}
}
},
"panel-4": {
"kind": "Panel",
"spec": {
"id": 4,
"title": "Commit Records (ausstehend)",
"description": "",
"links": [],
"data": {
"kind": "QueryGroup",
"spec": {
"queries": [
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "gemstone_stone_commit_records{StoneName=\"$StoneName\"}",
"legendFormat": "commit records"
}
},
"refId": "A",
"hidden": false
}
}
],
"transformations": [],
"queryOptions": {}
}
},
"vizConfig": {
"kind": "VizConfig",
"group": "timeseries",
"version": "13.1.1",
"spec": {
"options": {
"annotations": {
"clustering": -1,
"multiLane": false
},
"legend": {
"calcs": [],
"displayMode": "list",
"enableFacetedFilter": false,
"overflow": "ellipsis",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"fieldConfig": {
"defaults": {
"thresholds": {
"mode": "absolute",
"steps": [
{
"value": 0,
"color": "green"
},
{
"value": 50,
"color": "orange"
},
{
"value": 100,
"color": "red"
}
]
},
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"showValues": false,
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "line"
}
}
},
"overrides": []
}
}
}
}
},
"panel-5": {
"kind": "Panel",
"spec": {
"id": 5,
"title": "Free Pages",
"description": "",
"links": [],
"data": {
"kind": "QueryGroup",
"spec": {
"queries": [
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "gemstone_stone_free_pages{StoneName=\"$StoneName\"}",
"legendFormat": "free pages"
}
},
"refId": "A",
"hidden": false
}
},
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "gemstone_stone_pages_need_reclaim_size{StoneName=\"$StoneName\"}",
"legendFormat": "pages need reclaim"
}
},
"refId": "B",
"hidden": false
}
}
],
"transformations": [],
"queryOptions": {}
}
},
"vizConfig": {
"kind": "VizConfig",
"group": "timeseries",
"version": "13.1.1",
"spec": {
"options": {
"annotations": {
"clustering": -1,
"multiLane": false
},
"legend": {
"calcs": [],
"displayMode": "list",
"enableFacetedFilter": false,
"overflow": "ellipsis",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"fieldConfig": {
"defaults": {
"thresholds": {
"mode": "absolute",
"steps": [
{
"value": 0,
"color": "green"
},
{
"value": 80,
"color": "red"
}
]
},
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"showValues": false,
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
}
},
"overrides": []
}
}
}
}
},
"panel-6": {
"kind": "Panel",
"spec": {
"id": 6,
"title": "GC / Reclaim Aktivität",
"description": "",
"links": [],
"data": {
"kind": "QueryGroup",
"spec": {
"queries": [
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "gemstone_stone_gc_reclaim{StoneName=\"$StoneName\"}",
"legendFormat": "reclaims"
}
},
"refId": "A",
"hidden": false
}
},
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "gemstone_stone_gc_reclaim_page_count{StoneName=\"$StoneName\"}",
"legendFormat": "reclaimed pages"
}
},
"refId": "B",
"hidden": false
}
},
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "gemstone_stone_gc_reclaim_symbols{StoneName=\"$StoneName\"}",
"legendFormat": "reclaimed symbols"
}
},
"refId": "C",
"hidden": false
}
}
],
"transformations": [],
"queryOptions": {}
}
},
"vizConfig": {
"kind": "VizConfig",
"group": "timeseries",
"version": "13.1.1",
"spec": {
"options": {
"annotations": {
"clustering": -1,
"multiLane": false
},
"legend": {
"calcs": [],
"displayMode": "list",
"enableFacetedFilter": false,
"overflow": "ellipsis",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"fieldConfig": {
"defaults": {
"thresholds": {
"mode": "absolute",
"steps": [
{
"value": 0,
"color": "green"
},
{
"value": 80,
"color": "red"
}
]
},
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"showValues": false,
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
}
},
"overrides": []
}
}
}
}
},
"panel-7": {
"kind": "Panel",
"spec": {
"id": 7,
"title": "Shared Page Cache - Dirty Pages",
"description": "",
"links": [],
"data": {
"kind": "QueryGroup",
"spec": {
"queries": [
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "gemstone_monitor_global_dirty_page_count{StoneName=\"$StoneName\"}",
"legendFormat": "global dirty (uncommitted)"
}
},
"refId": "A",
"hidden": false
}
},
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "gemstone_monitor_local_dirty_page_count{StoneName=\"$StoneName\"}",
"legendFormat": "local dirty (write-pending)"
}
},
"refId": "B",
"hidden": false
}
}
],
"transformations": [],
"queryOptions": {}
}
},
"vizConfig": {
"kind": "VizConfig",
"group": "timeseries",
"version": "13.1.1",
"spec": {
"options": {
"annotations": {
"clustering": -1,
"multiLane": false
},
"legend": {
"calcs": [],
"displayMode": "list",
"enableFacetedFilter": false,
"overflow": "ellipsis",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"fieldConfig": {
"defaults": {
"thresholds": {
"mode": "absolute",
"steps": [
{
"value": 0,
"color": "green"
},
{
"value": 80,
"color": "red"
}
]
},
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"showValues": false,
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
}
},
"overrides": []
}
}
}
}
},
"panel-8": {
"kind": "Panel",
"spec": {
"id": 8,
"title": "Free Frames (Shared Page Cache)",
"description": "",
"links": [],
"data": {
"kind": "QueryGroup",
"spec": {
"queries": [
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "gemstone_monitor_free_frame_count{StoneName=\"$StoneName\"}",
"legendFormat": "free frames"
}
},
"refId": "A",
"hidden": false
}
}
],
"transformations": [],
"queryOptions": {}
}
},
"vizConfig": {
"kind": "VizConfig",
"group": "timeseries",
"version": "13.1.1",
"spec": {
"options": {
"annotations": {
"clustering": -1,
"multiLane": false
},
"legend": {
"calcs": [],
"displayMode": "list",
"enableFacetedFilter": false,
"overflow": "ellipsis",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"fieldConfig": {
"defaults": {
"thresholds": {
"mode": "absolute",
"steps": [
{
"value": 0,
"color": "green"
},
{
"value": 80,
"color": "red"
}
]
},
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"showValues": false,
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
}
},
"overrides": []
}
}
}
}
},
"panel-9": {
"kind": "Panel",
"spec": {
"id": 9,
"title": "Exporter Scrape-Latenz (Median)",
"description": "",
"links": [],
"data": {
"kind": "QueryGroup",
"spec": {
"queries": [
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "exposer_request_latencies{quantile=\"0.5\"}",
"legendFormat": "p50"
}
},
"refId": "A",
"hidden": false
}
},
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "exposer_request_latencies{quantile=\"0.9\"}",
"legendFormat": "p90"
}
},
"refId": "B",
"hidden": false
}
},
{
"kind": "PanelQuery",
"spec": {
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"expr": "exposer_request_latencies{quantile=\"0.99\"}",
"legendFormat": "p99"
}
},
"refId": "C",
"hidden": false
}
}
],
"transformations": [],
"queryOptions": {}
}
},
"vizConfig": {
"kind": "VizConfig",
"group": "timeseries",
"version": "13.1.1",
"spec": {
"options": {
"annotations": {
"clustering": -1,
"multiLane": false
},
"legend": {
"calcs": [],
"displayMode": "list",
"enableFacetedFilter": false,
"overflow": "ellipsis",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "single",
"sort": "none"
}
},
"fieldConfig": {
"defaults": {
"unit": "µs",
"thresholds": {
"mode": "absolute",
"steps": [
{
"value": 0,
"color": "green"
},
{
"value": 80,
"color": "red"
}
]
},
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 0,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"showValues": false,
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
}
},
"overrides": []
}
}
}
}
}
},
"layout": {
"kind": "GridLayout",
"spec": {
"items": [
{
"kind": "GridLayoutItem",
"spec": {
"x": 0,
"y": 0,
"width": 4,
"height": 4,
"element": {
"kind": "ElementReference",
"name": "panel-1"
}
}
},
{
"kind": "GridLayoutItem",
"spec": {
"x": 4,
"y": 0,
"width": 10,
"height": 8,
"element": {
"kind": "ElementReference",
"name": "panel-2"
}
}
},
{
"kind": "GridLayoutItem",
"spec": {
"x": 14,
"y": 0,
"width": 10,
"height": 8,
"element": {
"kind": "ElementReference",
"name": "panel-3"
}
}
},
{
"kind": "GridLayoutItem",
"spec": {
"x": 0,
"y": 8,
"width": 12,
"height": 8,
"element": {
"kind": "ElementReference",
"name": "panel-4"
}
}
},
{
"kind": "GridLayoutItem",
"spec": {
"x": 12,
"y": 8,
"width": 12,
"height": 8,
"element": {
"kind": "ElementReference",
"name": "panel-5"
}
}
},
{
"kind": "GridLayoutItem",
"spec": {
"x": 0,
"y": 16,
"width": 12,
"height": 8,
"element": {
"kind": "ElementReference",
"name": "panel-6"
}
}
},
{
"kind": "GridLayoutItem",
"spec": {
"x": 12,
"y": 16,
"width": 12,
"height": 8,
"element": {
"kind": "ElementReference",
"name": "panel-7"
}
}
},
{
"kind": "GridLayoutItem",
"spec": {
"x": 0,
"y": 24,
"width": 12,
"height": 8,
"element": {
"kind": "ElementReference",
"name": "panel-8"
}
}
},
{
"kind": "GridLayoutItem",
"spec": {
"x": 12,
"y": 24,
"width": 12,
"height": 8,
"element": {
"kind": "ElementReference",
"name": "panel-9"
}
}
}
]
}
},
"links": [],
"liveNow": false,
"preload": false,
"tags": [],
"timeSettings": {
"timezone": "browser",
"from": "now-6h",
"to": "now",
"autoRefresh": "30s",
"autoRefreshIntervals": [
"5s",
"10s",
"30s",
"1m",
"5m",
"15m",
"30m",
"1h",
"2h",
"1d"
],
"hideTimepicker": false,
"fiscalYearStartMonth": 0
},
"title": "GemStone/S - Beispiel Dashboard",
"variables": [
{
"kind": "QueryVariable",
"spec": {
"name": "StoneName",
"current": {
"text": "",
"value": ""
},
"hide": "dontHide",
"refresh": "onTimeRangeChanged",
"skipUrlSync": false,
"query": {
"kind": "DataQuery",
"group": "prometheus",
"version": "v0",
"datasource": {
"name": "afsdcdh6lvpj4d"
},
"spec": {
"__legacyStringValue": "label_values(gemstone_stone_up, StoneName)"
}
},
"regex": "",
"regexApplyTo": "value",
"sort": "disabled",
"options": [],
"multi": false,
"includeAll": false,
"allowCustomValue": true
}
}
]
}
}
